XT90-S Anti-Spark Connector 10AWG
XT90-S Anti-Spark Connector 10AWG
XT90-S Anti-Spark Connector 10AWG
XT90-S Anti-Spark Connector 10AWG
XT90-S Anti-Spark Connector 10AWG
XT90-S Anti-Spark Connector 10AWG

XT90-S Anti-Spark Connector 10AWG

$0.41-0.49 /Piece/Pieces

Payment Type:L/C,T/T,D/P,D/A,Paypal
Min. Order:1 Piece/Pieces
Transportation:Ocean,Land,Air,Express
Port:S,h,e
Contact Now
Product Description
Product Attributes
Packaging & Delivery
Product Description
Other information
Product Attributes

Model No.: XT90S

Brand: Suyi

Origin: China

Packaging & Delivery
Selling Units : Piece/Pieces
Package Type : cardboard box
Picture Example :
Download :

The file is encrypted. Please fill in the following information to continue accessing it

Inquire the password
xt90s Connector
Product Description

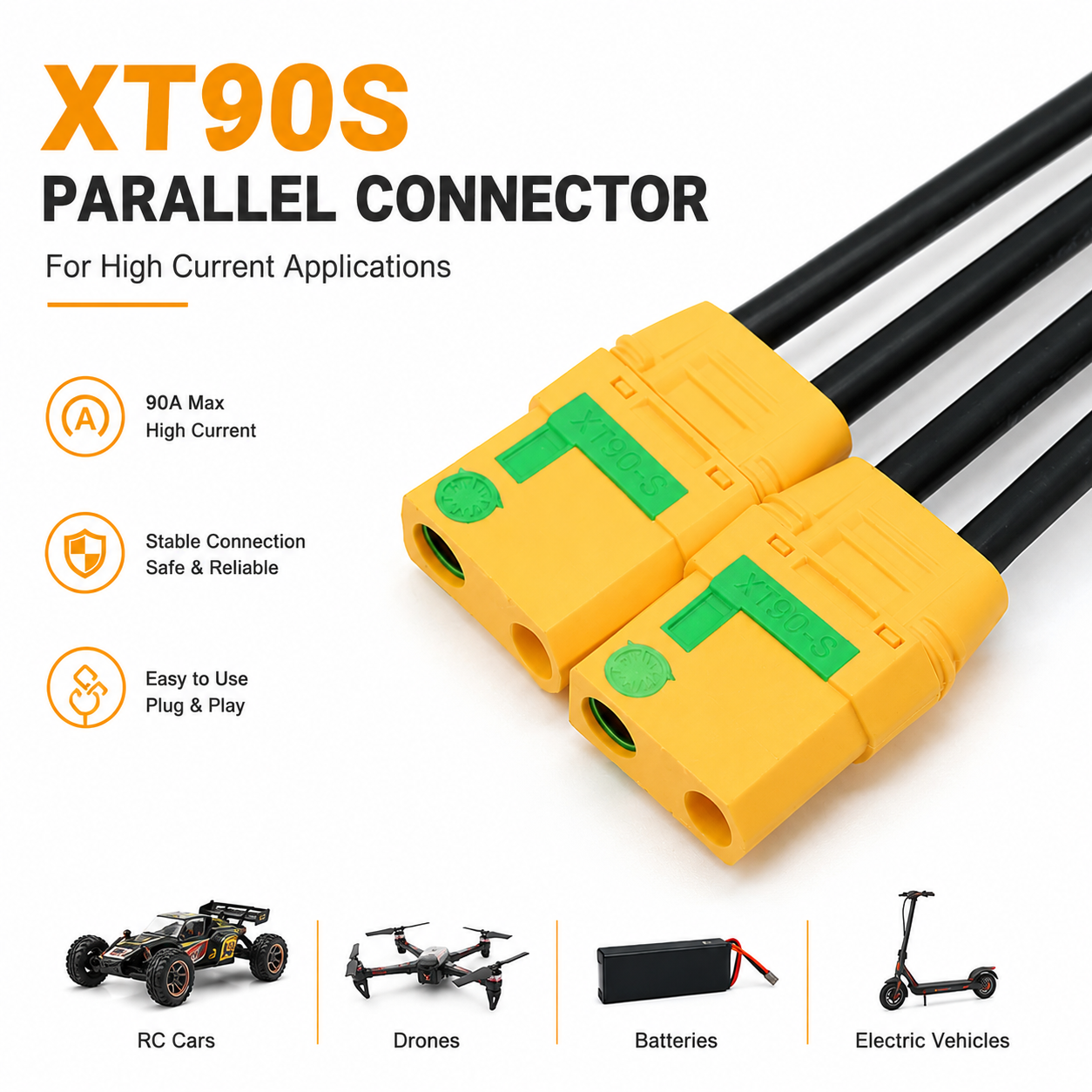

XT90-S Anti-Spark Connector 10AWG Parallel Wiring Harness

If you have ever hooked up a 6S, 8S, or even a 12S lithium battery pack, you know that sharp "POP" sound. That loud electrical spark doesn't just startle you—over time, it chews up contact tips, increases internal resistance, and can ruin expensive speed controllers or battery leads.

That is why we built this XT90-S Anti-Spark Connector 10AWG parallel setup. It takes the stress out of plugging in high-voltage power sources so you can focus on running your gear safely.

Point 1: Zero Sparks, Zero Contact Pitting

The magic happens right inside the green collar of the housing. We built a tiny sacrificial surface with a built-in step resistor into the tip. When you push the plugs together, that resistor tames the instant inrush current for a fraction of a second, charging the capacitors smoothly before the main contact hits home.

You get a clean, quiet connection every single time. If your build needs less current, you might run an XT30 Connector on micro drones, or use a classic xt60 connector for light setups. But once your voltage climbs past 24V or your battery packs get serious, stepping up from a standard xt60 male connector to an integrated anti-spark plug saves you a lot of headache and replacement costs down the road.

Point 2: Real 10AWG Pure Copper Wire That Actually Handles 90 Amps

Plenty of cheap adapters on the market skimp on copper, which means they get warm or soft under heavy throttle. We do not cut corners here:

Ultra-Fine Stranded Copper: Premium multi-strand oxygen-free copper core gives you minimal voltage drop and keeps heat low under sustained loads.
Soft Silicone Insulation: Heat-resistant up to 200°C. It stays bendy and flexible even when crammed into tight battery compartments, and it will not crack in freezing outdoor runs.
Solid Brass Contacts: Heavy gold plating gives you low resistance and keeps your voltage flowing directly where it belongs.
Whether you need a rock-solid XT90 wiring harness for portable energy storage power stations or a durable high-current XT90 wiring harness connector for electric bicycles, this cable handles hard pulls without melting down or dropping signal.

Point 3: Double Your Battery Capacity with Instant Plug & Play

Wiring two big battery packs in parallel shouldn't take an afternoon of soldering at your bench. This dual-input harness lets you combine two identical packs side-by-side in seconds, doubling your run time while keeping your output voltage identical.

The molded finger grips give you solid traction when pulling packs apart, so you never have to yank on the cables themselves. For heavy-duty setups that need an upgrade over a plain xt90 connector, this parallel link acts as the ideal XT90 wiring harness connector for RC models, giant scale drones, electric scooters, and high-drain DIY battery builds.

Quick Specs

Spec Item Detail
Product Model XT90-S Dual Parallel Adapter Harness
Connector Type Genuine Amass XT90-S (Anti-Spark)
Wire Gauge 10 AWG High-Temp Silicone Wire
Rated Current 45A Continuous / 90A Peak Pulse
Operating Temp -20°C to +120°C
Compatible Builds RC Cars, E-Scooters, Solar Inverters, Portable Power Packs

About Suyi Electronic (Dongguan, China)

Founded in 2015 in Chang'an Town, Dongguan, Suyi Electronic is a dedicated manufacturer of custom wire harnesses, industrial cable assemblies, and power connectors. From Waterproof Connectors and automotive leads to custom battery wiring harnesses, our team handles custom lengths, wire gauges, and connector pairings with fast turnaround and consistent quality control. Got a custom run or need a specific cable layout? Drop us an inquiry anytime.
