90A XT90-S Anti-Spark Wire Harness Connector 10AWG Pure Copper 200°C Silicone Cable Assembly for FPV Drone RC Car Lipo Battery

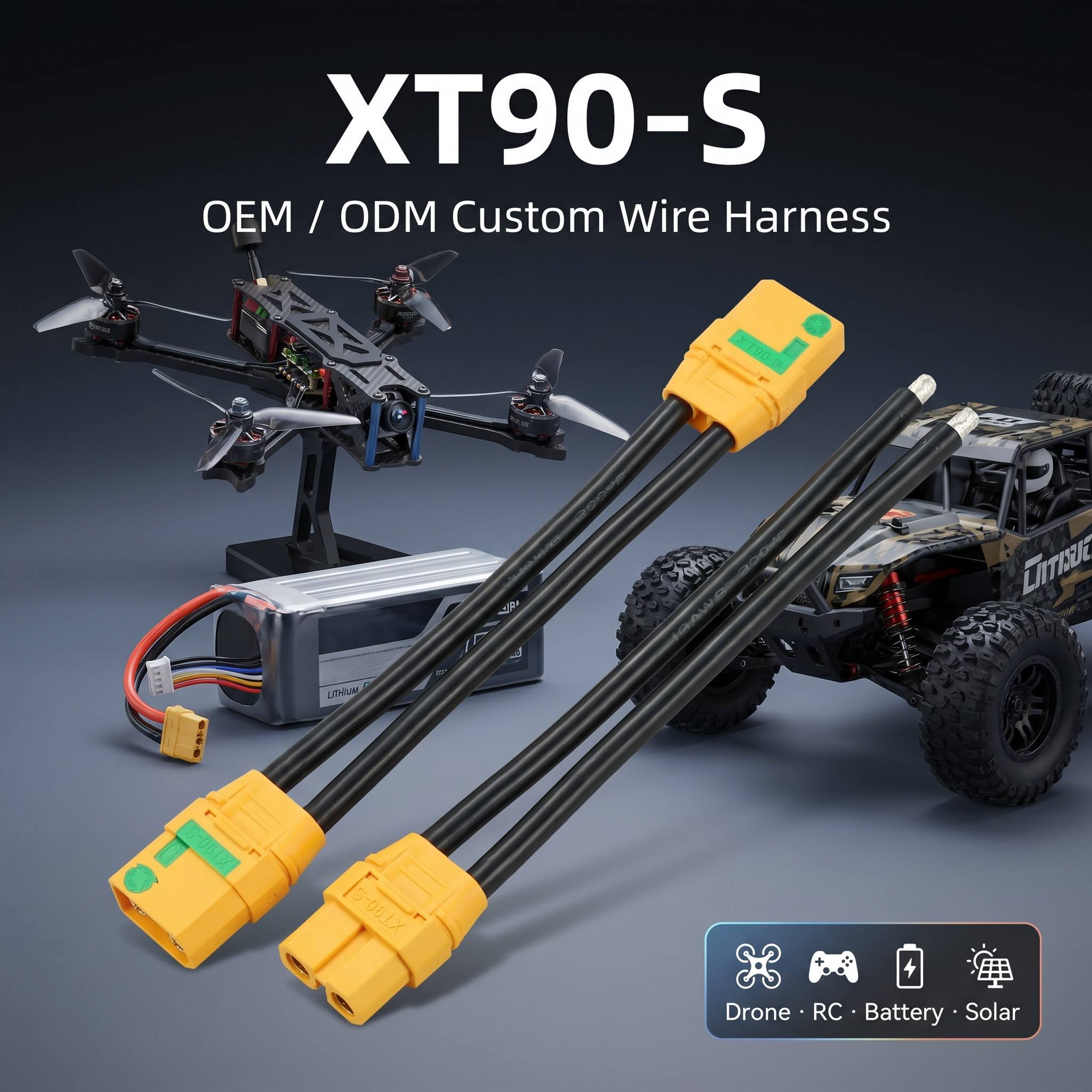

This is an XT90-S series high-current wire harness featuring genuine XT90-S anti-spark male and female connectors in signature yellow housing, paired with high-flexibility black silicone-jacketed wire. The XT90-S connector incorporates a built-in resistor in the male plug that pre-charges the capacitors in ESCs and power electronics before full current contact is made, effectively suppressing the spark and voltage spike that occurs when connecting a fully charged battery — protecting both the connector and downstream electronics from damage over time.



The silicone cable jacket provides superior flexibility and heat resistance compared to standard PVC wire, making this harness well-suited for high-current applications in drones, RC vehicles, battery packs, and solar energy systems where both current capacity and routing flexibility are critical.



Full OEM/ODM customization is available including cable length, wire gauge (AWG), connector gender combination, and labeling. Small orders and prototype quantities are welcome.



Key features:



XT90-S anti-spark connector — suppresses inrush current and connection spark

High-flexibility silicone wire jacket for tight routing and heat tolerance

Rated for high continuous current (connector and gauge dependent)

Applications: Drone · RC · Battery · Solar (as shown on product image)

OEM/ODM custom length, gauge, and configuration accepted

Small orders and prototype quantities welcome

RoHS compliant materials

Parameter	Specification
Connector Model	XT90-S (Anti-Spark)
Housing Color	Yellow (standard)
Gender Options	Male-to-Female / Male pigtail / Female pigtail / custom

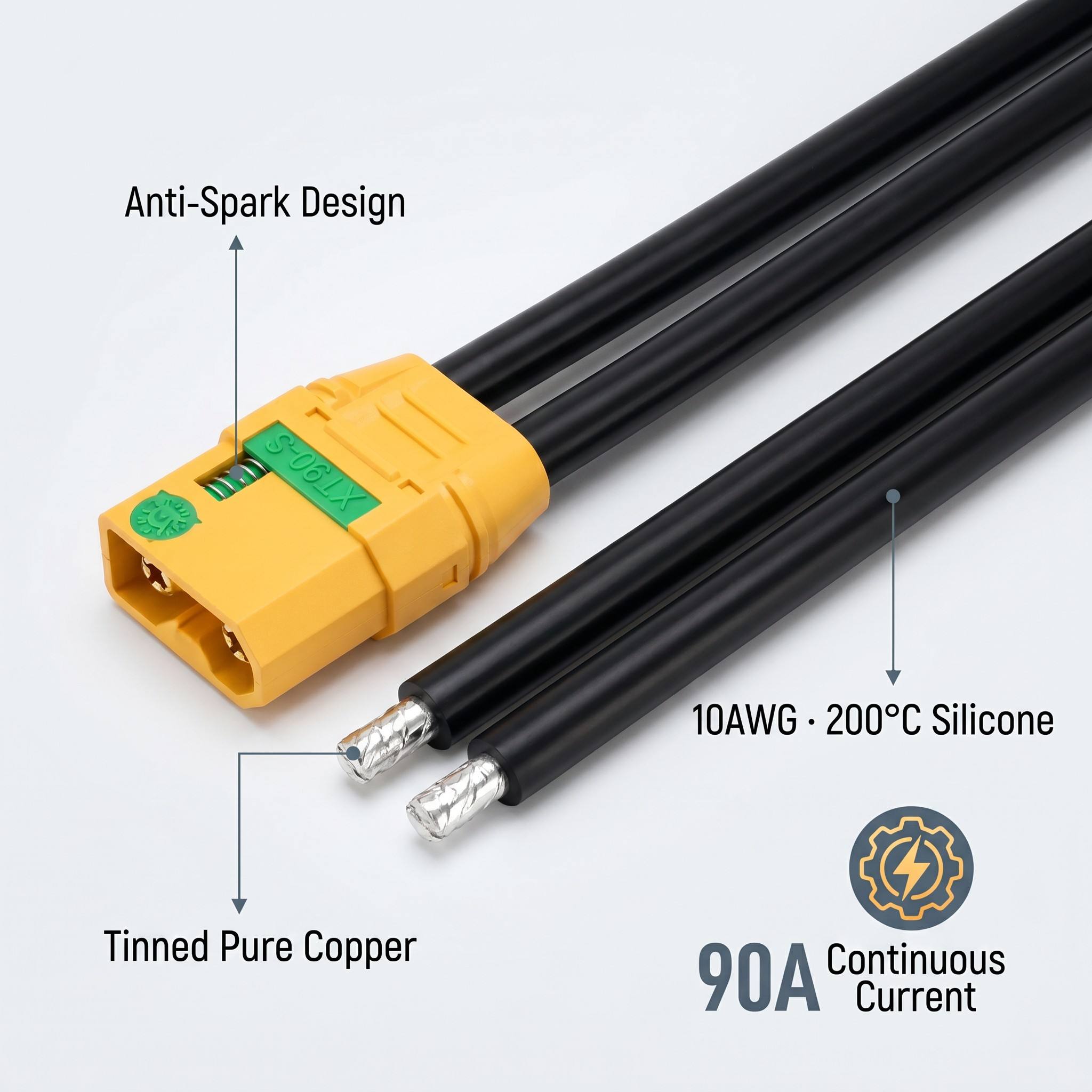

Anti-Spark Feature	Built-in pre-charge resistor on male plug
Connector Rated Current	Up to 90 A continuous
Connector Rated Voltage	Up to 60V DC
Wire Type	High-flexibility silicone-jacketed multi-strand copper
Wire Gauge AWG	8 / 10 / 12 / 14 (custom on request)
Wire Color	Black (standard); custom color available
