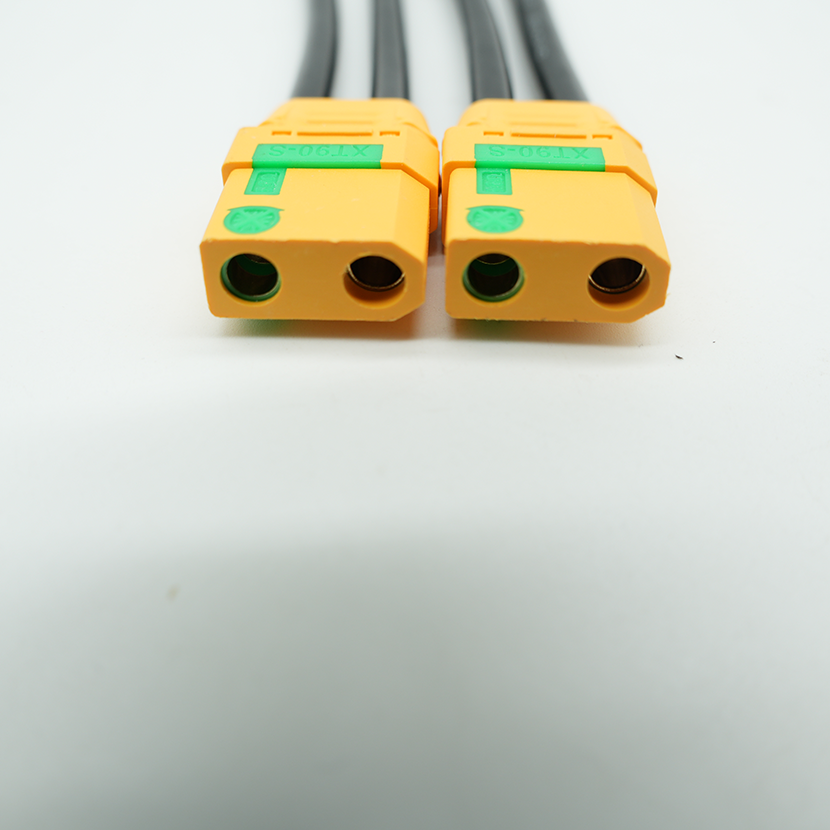

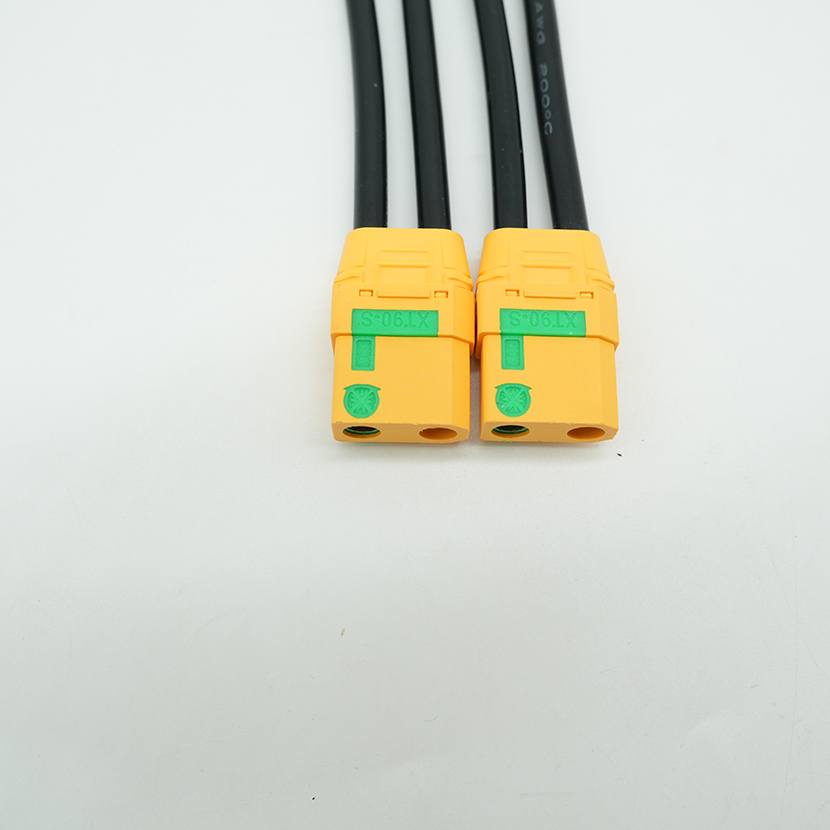

XT90S Anti-Spark Parallel Y Adapter
XT90S Anti-Spark Parallel Y Adapter
XT90S Anti-Spark Parallel Y Adapter
XT90S Anti-Spark Parallel Y Adapter
XT90S Anti-Spark Parallel Y Adapter
XT90S Anti-Spark Parallel Y Adapter

XT90S Anti-Spark Parallel Y Adapter

$0.33-0.43 /Piece/Pieces

Payment Type:L/C,T/T,D/P,Paypal
Min. Order:10 Piece/Pieces
Transportation:Ocean,Land,Air,Express
Port:Shenzhen
Product Attributes

Model No.: XT90s connector

Brand: Suyi

Origin: China

Place Of Origin: China

Species: Adapter

Application: Automotive, Power

Gender: Female, Male

Contacts: 2p

Packaging & Delivery
Selling Units : Piece/Pieces
Package Type : cardboard box
Picture Example :
Download :

The file is encrypted. Please fill in the following information to continue accessing it

xt90s Connector
Product Description

XT90-S Anti-Spark Connector: Heavy-Duty Cable Assemblies & Harness Solutions



1. Product Overview: Ending the Spark Once and for All

If you have ever plugged in a high-voltage lithium battery pack and winced at that sharp, violent pop sound accompanied by an electrical arc, you know how damaging inrush current can be. That spark pits gold plating, degrades copper contacts, increases loop resistance, and can ruin speed controllers or battery management boards over time.

The XT90-S Anti-Spark Connector solves that exact issue.

At Dongguan Suyielectronics Co., Ltd., we take original-grade, high-temp nylon XT90-S housings and build them into custom wiring harnesses tailored to your hardware layout. Whether you assemble e-bikes, modular energy storage units, or heavy-lift drones, having clean, spark-free connections protects both your equipment and the people operating it.

While smaller projects use an XT30 Connector for micro electronics or a standard xt60 connector for everyday battery packs, high-voltage systems demand heavier sustained current. The XT90-S steps in where smaller plugs hit their limit, delivering up to 90A burst power with an integrated pre-charge circuit that safely absorbs voltage spikes before pins seat home.

2. Practical Applications & Setup Scenarios

Electric Bicycles & Light Electric Vehicles
High-power e-bikes and cargo scooters run 48V to 72V packs linked to large motor controllers. Using standard plugs at these voltages causes aggressive sparking on every battery swap. Our high-current XT90 Wiring Harness connector for electric bicycles gives riders and technicians a secure, spark-free grip with an asymmetrical shape that prevents accidental reverse polarity.

Portable Energy Storage & Solar Stations
Mobile battery cubes, emergency backup units, and portable solar generators require foolproof DC cabling. We build the XT90 wiring harness for portable energy storage power stations using heavy-gauge wire, customized lengths, and your choice of secondary leads (like Anderson plugs or terminal lugs) for straightforward integration.

Commercial RC Models & Drone Platforms
A standard xt60 male connector works well on lightweight quadcopters, but multi-rotor drones and big RC aircraft pulling 6S to 12S LiPo power need more headroom. Installing an XT90 wiring harness connector for RC models ensures safe, arc-free power-ups that safeguard expensive ESC units during field operations.

3. Technical Specifications

Parameter Value
Model XT90-S (Spark-Proof Female) / XT90 (Standard Male)
Rated Voltage DC 500V Max
Rated Current 45A (12 AWG) / 60A (10 AWG) continuous
Peak Instantaneous Current 90A burst (≤10 seconds)
Pin Diameter 4.5mm solid bullet contacts
Contact Plating Gold-plated brass
Housing Material Nylon PA66 (UL94-V0 Flame Retardant)
Wire Compatibility 8 AWG, 10 AWG, 12 AWG silicone wire
Pre-Charge Resistor 5.6 Ω internal ring

4. Quick Comparison: Finding the Right Plug

Micro Devices: For small builds under 30A, the tiny xt30 connector keeps weight minimal.
Mid-Tier Setups: For 30A to 60A draws around 12V–24V, an xt60 connector or inline xt60 male connector remains the industry standard.
Heavy Power Without Sparks: A basic xt90 connector handles 90A current, but it lacks the pre-charge resistor. For packs over 24V or systems with large capacitors, moving to the XT90-S prevents spark erosion and extends gear life.

5. Custom Harness Manufacturing by Suyielectronics

Founded in 2015 in Chang'an Town, Dongguan City, Dongguan Suyielectronics Co., Ltd. specializes in custom wiring harnesses, terminal cables, and connector assemblies. We supply complete, factory-tested wiring solutions:

Tailored Lengths & Wire Types: High-temp silicone, PVC, or cross-linked wires cut and stripped to your exact dimensions.
Secondary End Options: Terminated with ring lugs, spade terminals, or multi-pin headers to fit your enclosure directly.
100% Quality Inspected: Continuity, pull-force, and solder integrity verified before shipping.

6. Frequently Asked Questions (FAQ)

Q: Are you a trading company or a manufacturer/factory?
A: We are a factory.

Q: How do you guarantee product quality?
A: Quality is our lifeline. All raw materials we use are non-toxic and environmentally friendly, and we have a professional QA/QC team to ensure quality.

Q: Do you provide samples? Are they free or extra?
A: We provide free samples; you only need to pay for shipping.

Q: What is your delivery time?
A: Samples usually take 5-7 days, while mass production takes 10-15 working days, depending on the quantity.

Q: What is your minimum order quantity?
A: One piece is also our minimum order quantity.

Q: Do you accept OEM or ODM orders?
A: Yes, we accept OEM and ODM orders from our customers.

7. Get in Touch for Custom Harness Orders

Stop dealing with burned pins and electrical arcs. Contact Dongguan Suyielectronics Co., Ltd. with your wire gauge, length, and connector needs, and our team will prepare a direct quote and prototype samples for your build.
