JST XH 2.54 Wire Harness
JST XH 2.54 Wire Harness
JST XH 2.54 Wire Harness
JST XH 2.54 Wire Harness
JST XH 2.54 Wire Harness

JST XH 2.54 Wire Harness

$0.2-0.25 /Piece/Pieces

Min. Order:10 Piece/Pieces
Transportation:Ocean,Land,Air,Express
Port:Shenzhen
Contact Now
Product Description
Product Attributes
Packaging & Delivery
Product Description
Other information
Product Attributes

Model No.: JST

Brand: Suyi

Origin: China

Place Of Origin: China

Application: Electronic, Computer, Automobile, Home Appliance, Motorcycle

Packaging & Delivery
Selling Units : Piece/Pieces
Package Type : cardboard box
Picture Example :
Download :

The file is encrypted. Please fill in the following information to continue accessing it

Inquire the password
JST XH2.54 Ribbon Cable Harness
Product Description

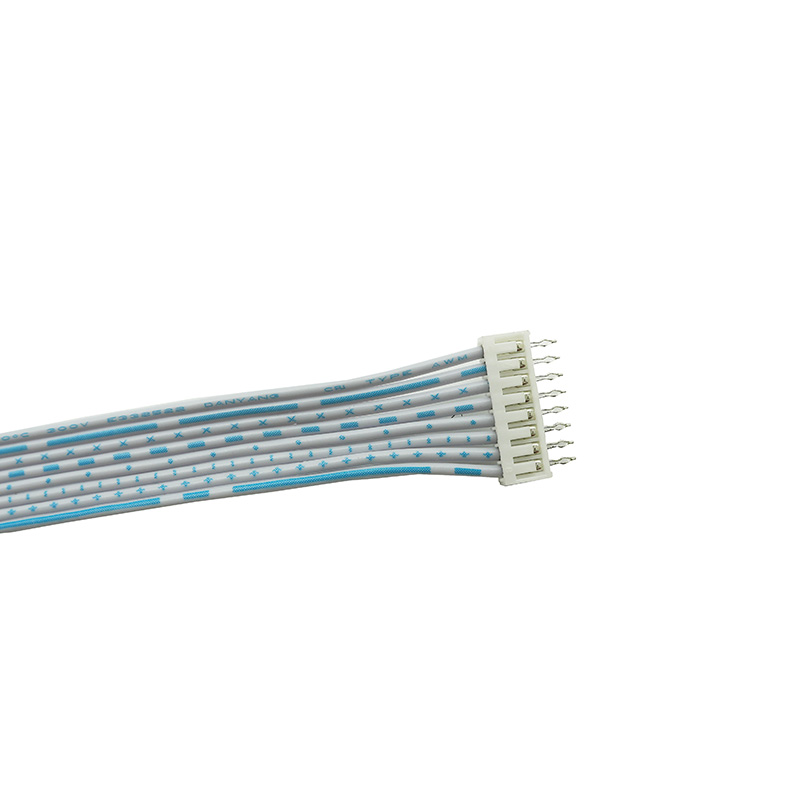

custom engine wiring harness

1. Product Overview

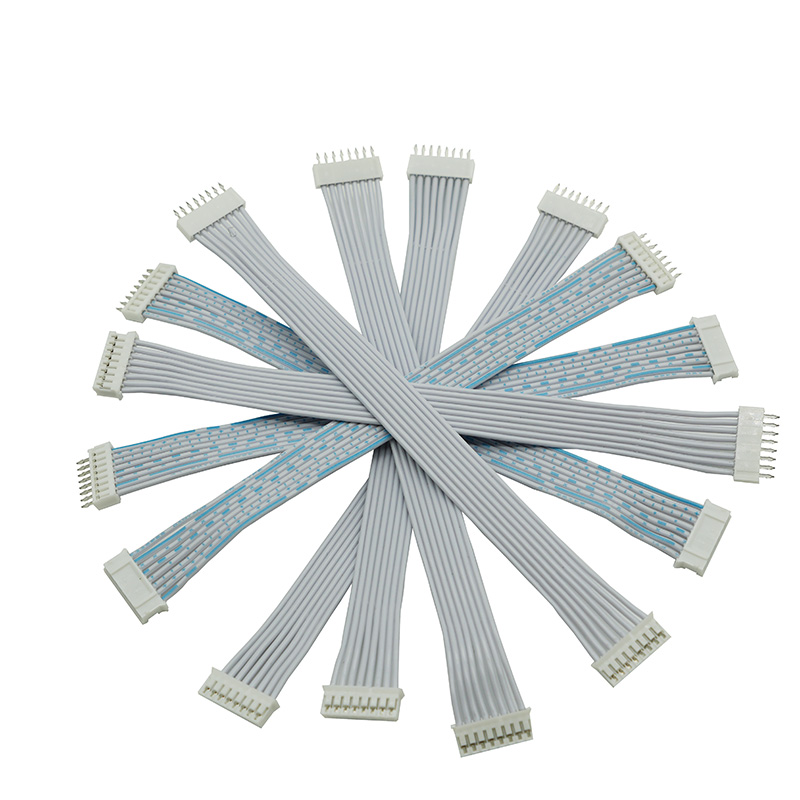

This wire harness features a flat multi-conductor ribbon cable in white/light grey with visible blue printed stripe markings, terminated on both ends with white JST-compatible multi-pin connector housings. The flat ribbon construction keeps all conductors aligned in a single plane, enabling neat, parallel routing inside enclosures where cable management and minimal stack height are priorities.

The blue printed stripe along the cable body serves as a consistent polarity and orientation reference — pin 1 can be identified from either end without additional labeling, which reduces assembly errors and simplifies rework in production environments. The connector housings visible in the image are consistent with JST XH (2.5 mm pitch) or PH (2.0 mm pitch) series, both of which are widely used for signal and low-power connections on consumer electronics, development boards, and industrial PCBs.

The flat ribbon format offers a practical advantage over round multi-core cables in confined spaces: it lies flat against surfaces, threads easily through narrow slots, and can be folded without damaging conductors, making it a preferred choice for internal board-to-board wiring in layered assemblies.

Each harness is produced with automated crimping and undergoes 100% continuity testing before shipment. Custom length, pin count, pitch, and connector orientation are available on request. Small orders and prototype quantities are welcome.

Key features:

Flat ribbon multi-conductor cable for low-profile, organized routing
Blue printed stripe for reliable pin 1 / polarity orientation at both ends
JST-compatible white housing connectors on both ends
Automated machine crimping for consistent terminal seating
100% continuity tested before shipment
RoHS compliant materials
OEM/ODM accepted, small orders and samples welcome

2. Technical Specifications

Parameter Specification
Connector Style JST XH / PH series compatible
Pitch Options 2.5 mm (XH) / 2.0 mm (PH) — confirm at inquiry
Pin Count 4P / 6P / 8P / 10P / 12P and above (custom available)
Wire Type Flat ribbon, multi-conductor, grey/white PVC jacket
Stripe Marking Blue printed stripe for pin 1 / polarity reference
Wire Gauge AWG 26 / 28 (custom on request)
Cable Length Custom; please specify at inquiry
Rated Voltage Up to 250V AC/DC (series dependent)
Rated Current Up to 3 A per contact (AWG 26, XH series)

3. Application Scenarios

Consumer Electronics & Smart Devices Flat ribbon harnesses of this pin count and pitch are widely used inside smart home devices, wireless routers, set-top boxes, and portable electronics for board-to-board signal and power connections where routing space is limited and assembly repeatability matters.

Development Boards & Prototyping JST XH and PH connectors are standard on Arduino shields, Raspberry Pi HATs, and maker ecosystem breakout boards. This harness is ready to use as a plug-in interconnect between development modules, sensors, and display panels without soldering.

3D Printers & CNC Controllers Multi-pin flat harnesses connect control boards to LCD display panels, filament sensors, endstop arrays, and extruder sub-assemblies in desktop 3D printers, where the flat cable profile reduces interference with moving axes.

Industrial Sensors & Instrumentation Used to connect multi-channel sensor arrays, ADC input modules, and signal conditioning boards inside compact measurement instruments and data loggers where multiple signal lines must be routed in a single organized assembly.

Battery Management Systems Multi-pin XH harnesses are a standard choice for cell balance wiring in lithium battery packs with 4–12 cells, connecting individual cell taps to BMS balance circuits in a structured, identifiable order.

Medical & Portable Diagnostic Equipment The flat low-profile cable and clear pin orientation marking make this harness suitable for internal signal wiring in handheld diagnostic devices and patient monitoring accessories where compact, error-free assembly is required.

4.FAQ

Q: Are you a trading company or a manufacturer/factory?
A: We are a factory.

Q: How do you guarantee product quality?
A: Quality is our lifeline. All raw materials we use are non-toxic and environmentally friendly, and we have a professional QA/QC team to ensure quality.

Q: Do you provide samples? Are they free or extra?
A: We provide free samples; you only need to pay for shipping.

Q: What is your delivery time?
A: Samples usually take 5-7 days, while mass production takes 10-15 working days, depending on the quantity.

Q: What is your minimum order quantity?
A: One piece is also our minimum order quantity.

Q: Do you accept OEM or ODM orders?
A: Yes, we accept OEM and ODM orders from our customers.
