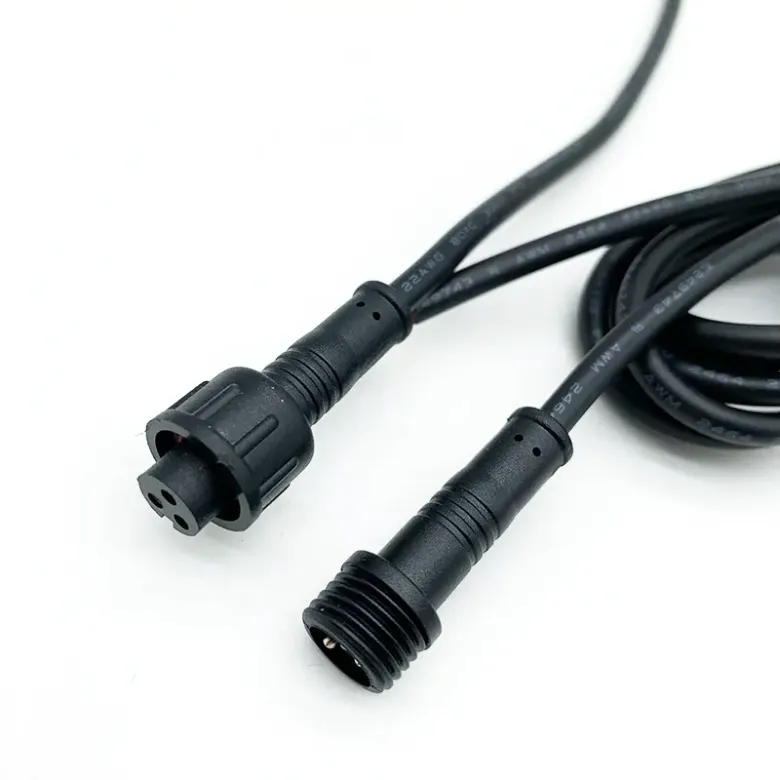

Our IP68-sealed cable assemblies are built to outperform standard connectivity solutions in demanding environments. Engineered to resist dust, water, vibration, and harsh operating conditions, they deliver dependable performance and a service life of up to five years longer than conventional alternatives. By reducing maintenance needs and minimizing costly downtime, these rugged assemblies provide lasting reliability for industrial, outdoor, and mission-critical applications where secure connectivity is essential.
When a cable assembly is installed outdoors, underground, or near washdown equipment, a basic connector may not be enough. Water, dust, vibration, oil, and repeated bending can slowly weaken the connection. A small seal failure can lead to signal loss, downtime, or a full cable replacement.
I look at IP68 cable assemblies as part of the system, not as a single waterproof label. The connector, cable jacket, backshell, sealing ring, contact design, and installation method all affect service life.
IP68 protection means the assembly has been tested against dust and water entry under defined conditions. The exact test depth, immersion time, temperature, and product setup matter. A cable assembly should be selected from its test details, not from the rating alone.
A dependable assembly starts with the right materials.
For outdoor control panels, industrial sensors, and pump equipment, cable jackets may need resistance to moisture, oils, sunlight, or movement. PVC can suit some fixed installations. PUR is often selected where abrasion and repeated movement are concerns. TPE may fit applications that need flexibility across changing temperatures.
The connector body also needs to match the working environment. Nylon, thermoplastic, and metal housings each offer different levels of strength, weight, chemical resistance, and cost. I check the full application before recommending one material.
The sealing system deserves the same attention. A gasket that is too soft may deform under pressure. A seal that is too hard may not close evenly. Cable diameter must also fit the sealing range. If the cable is too small or too large for the gland, the IP rating may not remain valid after installation.
I usually ask a few practical questions before choosing the assembly:
These details can change the design. A cable for a fixed outdoor camera may need a different jacket and strain relief than a cable used on a moving machine arm.
Many cable failures begin at the point where the cable enters the connector. Repeated pulling and bending can damage the conductor, shield, or seal.
A well-designed IP68 cable assembly uses strain relief to transfer mechanical force away from the contact area. The cable should also follow the maker’s bend-radius guidance. A tight bend placed directly against the connector can create stress even when the connector itself is sealed.
For moving equipment, I review the bending cycle, travel distance, speed, and cable path. A cable assembly made for fixed use may not perform well on a drag chain or robotic axis.
Water protection does not replace proper electrical selection.
The contact size must match the current and voltage requirements. The cable conductor size should account for distance, load, and voltage drop. Signal applications may require twisted pairs, shielding, drain wires, or controlled impedance.
For a sensor installed beside a motor, shielding and grounding may matter as much as the IP rating. A sealed connector can still carry noise if the cable layout and shield termination are poorly matched to the system.
I also check the pinout, keying, contact plating, and mating cycle requirement. A clear pinout reduces wiring mistakes during installation and maintenance.
A connector may pass an IP68 test by itself while the complete cable assembly performs differently. Cable diameter, overmolding, gland fit, field termination, and mating condition can affect water protection.
A useful quality plan may include:
The test method should reflect the actual product. If the assembly will be connected during immersion, the test should consider the mated condition. If the cable will be exposed to pressure washing, a basic splash test may not represent the working environment.
Consider a level sensor installed near a wastewater pump. The cable is exposed to moisture, vibration, cleaning activity, and occasional immersion. A short indoor cable with a standard connector may work during initial commissioning. Months later, water can reach the contacts through a damaged jacket, a loose gland, or an incorrectly fitted seal.
For this type of installation, I would review the following:
The assembly does not need a marketing claim that it will last forever. It needs a design that matches the pump station’s actual conditions and a clear installation method that technicians can follow.
A lower purchase price may not reflect the full cost of ownership. I compare suppliers by asking for practical information:
I also request a sample when the cable will be used in a harsh location. A sample can reveal whether the connector is easy to mate, whether the overmold holds the cable securely, and whether the bend relief suits the available space.
A few choices can reduce the expected service life of an IP68 cable assembly:
These issues are often easy to prevent when they are considered during the design stage.
I choose IP68 cable assemblies by looking at the whole service condition: water exposure, cable movement, electrical load, materials, sealing method, testing, and maintenance. A strong assembly is not defined by a rating printed on a label. Its value comes from how well the complete design fits the equipment around it.
For an outdoor machine, pump system, sensor network, or washdown area, the right cable assembly can reduce avoidable connection problems and make maintenance more predictable. The best result comes from matching the product to the application, confirming the test conditions, and installing it with the same care used during design.
A seal can look strong when it is new. The real test begins after months of heat, moisture, dust, movement, and repeated use.
I have seen small sealing gaps lead to larger problems. Water enters a control box. Dust reaches a moving part. Outdoor storage becomes harder to protect. Replacing the full unit can cost more time than replacing the seal itself.
A tougher sealing design can help reduce these risks. When tested under the same conditions, it may stay effective for up to five years longer than a standard seal. The actual service life depends on the material, installation, temperature, pressure, cleaning method, and working environment.
The key is not a strong claim on the package. The key is a seal that matches the way the product is used.
A durable sealing system usually needs four things:
I pay close attention to compression. A seal that is too loose may leave a path for moisture. A seal that is pressed too hard may lose its shape or become damaged. The correct fit helps maintain contact without placing extra stress on the surrounding parts.
Installation also affects service life. Before fitting the seal, I remove dust, oil, and old adhesive from the contact area. I check for cuts, uneven edges, and sharp points. A clean surface gives the seal a better chance to sit evenly.
A simple check can prevent many problems:
For example, a small outdoor electrical enclosure may sit near a loading area. It faces rain, dust from vehicles, and repeated opening during service work. A seal that performs well in a clean indoor room may not offer the same service life there. A better choice would be a seal tested for outdoor exposure and repeated opening, with clear information about its limits.
The phrase “five years longer” should be supported by test data. Buyers should be able to see the comparison method, test conditions, sample type, and failure standard. A result from a controlled test does not guarantee the same period in every location.
This approach helps set a useful expectation. A sealed product is not maintenance-free. It still needs inspection after exposure to harsh conditions, accidental impact, or repeated disassembly. Replacing a worn seal early can help protect the parts behind it.
I look at sealing performance as a combination of design, material, installation, and care. A tough seal can support longer use, but the claim should match the evidence. When the conditions are clear, “sealed tough for 5 years longer” becomes a practical product message rather than a promise that fits every situation.
Dust and water can enter through small gaps, ports, and loose seals. Once inside, they may affect charging, controls, sensors, or other internal parts. For people who use a device outdoors, near water, or in dusty work areas, protection needs to be part of the product design.
An IP68-rated device is built to help keep dust out and handle water exposure under the conditions defined by the manufacturer. The “6” refers to dust protection. The “8” refers to protection against long-term water immersion at a stated depth and duration. These conditions can vary by product, so I always check the product guide before using the device underwater.
I also pay attention to the places most likely to collect dirt or moisture:
A sealed design can help reduce daily worries when I use a device around rain, splashes, sand, or dust. For example, a worker near a construction site may carry an IP68-rated phone through areas with loose dust and light rain. A hiker may use a protected GPS device during a wet trail trip. These situations still require careful handling, yet the added protection can support more dependable daily use.
IP68 protection does not make every device suitable for every water condition. Salt water, chlorinated water, hot water, strong water pressure, and deep immersion may affect seals or materials. Water resistance can also change after impact, aging, or unauthorized repair.
To help maintain the protection, I follow a few simple habits:
The rating is a useful guide, not a replacement for careful use. When I match the device to the conditions around me and follow the stated limits, IP68 protection can help reduce the risk of dust and water entering the housing during everyday outdoor activities.
When a cable assembly fails, the problem rarely stays inside the cable. A loose terminal can stop a machine, create rework, delay a shipment, or force a service visit. I have seen buyers focus on unit price while overlooking connector fit, bend radius, strain relief, labeling, and test records.
A reliable cable assembly should match the way your equipment is built and used. That means looking beyond the wire itself.
Every project begins with a clear view of the working environment.
I ask questions such as:
A cable used inside a control cabinet has different needs from one installed on a robotic arm. A medical device cable may require careful routing and clear identification. A construction machine may need stronger protection against movement, dirt, and vibration.
The application guides the design.
The connector is often the part users handle most. It needs to fit the equipment, remain secure during use, and support service work.
I review:
A connector that fits on paper may still create trouble if technicians cannot reach it easily. A locking connector can help reduce accidental disconnection in equipment exposed to vibration. A keyed design can help prevent incorrect installation during maintenance.
Small details can reduce confusion on the production floor.
Bending is one of the common causes of cable damage. When a cable is routed too tightly or moves beyond its intended range, the conductors can weaken over time.
I check the cable’s:
For a fixed installation, a standard industrial cable may be suitable. For drag chains or repeated motion, the cable needs a construction made for that type of movement. The correct choice depends on the equipment cycle, travel distance, speed, and installation method.
A cable assembly should not only work during installation. It should support the planned service life of the equipment.
A cable can fail near the connector when pulling force reaches the contacts or solder joints. Proper strain relief helps move that force into the cable jacket and connector body.
I look at:
A clean strain relief design also makes the assembly easier to route. It can prevent sharp bends near the connector and reduce stress during handling.
Visual inspection is useful, but it cannot find every wiring problem. I recommend a test plan based on the assembly and its use.
Common checks include:
For a multi-branch harness, a test fixture can help confirm each circuit before shipment. The test record may include the part number, revision, operator, date, and test result.
This information gives the production and service teams a shared reference.
A cable assembly drawing should show more than the cable length. It may need to include:
I prefer drawings that a technician can understand without asking the design team for extra details. A clear drawing supports purchasing, assembly, inspection, and field service at the same time.
When a design changes, revision control matters. A small pin change can affect the machine, the test fixture, the parts list, and the service manual.
Imagine a sensor cable used on an automated conveyor. The cable bends each time the sensor arm moves. The original design uses a fixed-installation cable with a short bend near the connector. After repeated cycles, the outer jacket shows wear and the signal becomes unstable.
I would review the motion path, bend radius, cable length, connector exit direction, and strain relief. The updated assembly might use a cable suited to repeated flexing, a better-supported connector exit, and a label that helps technicians identify the sensor location.
The change is not based on adding parts without purpose. It responds to the way the equipment operates.
A cable used on a medical device may need a smooth outer surface for cleaning, clear markings for service, and a connector that cannot be inserted in the wrong direction.
The design review should consider the cleaning method, routing space, user handling, connector position, and replacement process. Materials and test requirements should follow the device maker’s specifications and applicable quality procedures.
The cable should support safe handling and clear maintenance work without making claims that the product has not been tested to prove.
Custom cable assemblies can help when standard cables create extra adapters, poor routing, or unnecessary connection points. A custom design may combine the required cable length, connector combination, branch layout, shielding, and labels into one assembly.
I do not treat customization as a reason to add complexity. I use it when the change improves fit, assembly work, service access, or test control.
Before production, I confirm:
This process helps turn an early idea into a buildable product.
A finished cable can be damaged before it reaches the equipment if it is packed without support. I check whether connectors are protected, branches are separated, and labels remain readable after transport.
For longer assemblies, the packing method should avoid tight bends. Each package can include a part number, quantity, revision, and inspection status when the project requires it.
The goal is simple: the assembly should arrive ready for inspection and installation.
I look for a supplier that can discuss the application, read technical drawings, confirm open questions, and explain the test plan in plain language.
Useful questions include:
A low price does not help if the assembly needs rework after delivery. A suitable supplier should help reduce avoidable errors before they reach production.
The best cable assembly is not always the most complex one. It is the one that fits the equipment, supports the working environment, passes the agreed tests, and gives technicians clear information.
When I review a cable project, I focus on the full path from design to installation. Wire selection matters. Connector fit matters. Strain relief, testing, labeling, drawings, and packaging matter as well.
That extra attention can make the assembly easier to build, easier to install, and easier to service.
We has extensive experience in Industry Field. Contact us for professional advice:suyi: layla@suyidz.com/WhatsApp +8618223673522.
International Electrotechnical Commission | 2013-08-01 | Degrees of Protection Provided by Enclosures (IP Code)
IPC and WHMA | 2022-02-01 | Requirements and Acceptance for Cable and Wire Harness Assemblies
International Electrotechnical Commission | 2004-11-15 | Conductors of Insulated Cables
International Electrotechnical Commission | 2007-12-01 | Environmental Testing Part 2-6: Tests for Vibration
International Organization for Standardization | 2011-06-15 | Road Vehicles — 60 V and 600 V Single-Core Cables
International Electrotechnical Commission | 2004-07-15 | Tests on Electric and Optical Fibre Cables Under Fire Conditions
