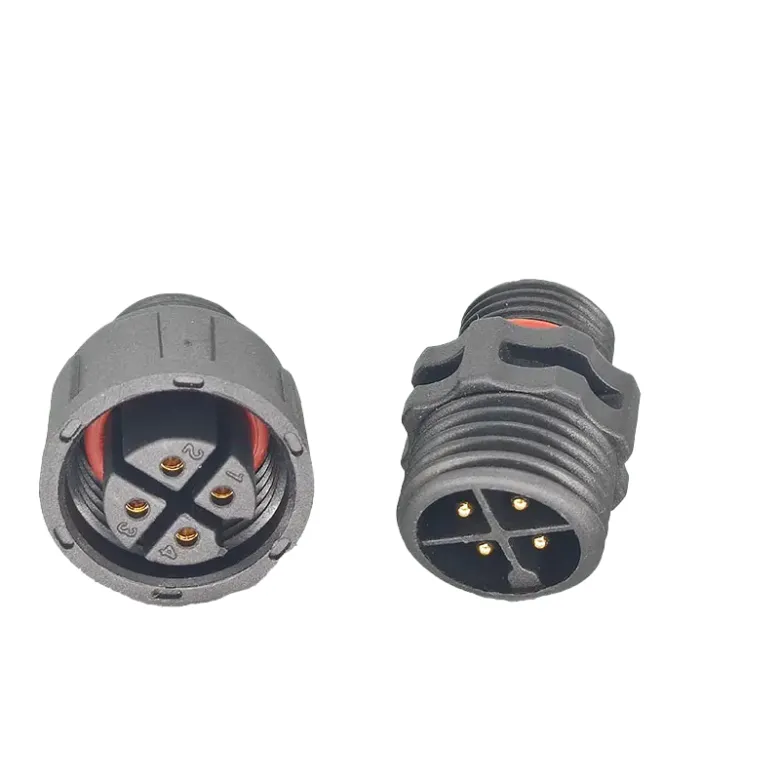

Reliable IP67 plastic connectors offer effective protection against dust and temporary water immersion, making them a practical choice for industrial equipment, outdoor systems, and automotive applications. But an IP67 rating alone does not guarantee long-term performance. Reliability also depends on sealing design, material quality, connector compatibility, correct installation, and routine maintenance. Before choosing a connector, consider the actual operating environment, including moisture, temperature, vibration, chemicals, and mechanical stress. Selecting a product that matches these conditions helps ensure stable connections, extended service life, and dependable protection in demanding applications.
When I choose a plastic connector for outdoor equipment, I do not treat “IP67” as a property of the plastic alone. The rating depends on the full connector system: housing, gasket, cable seal, locking method, mating plug, and installation process.
A plastic connector can meet IP67 standards, but only when the complete assembly passes the required test conditions.
The IP code comes from IEC 60529.
The first number, “6,” means the enclosure is dust-tight under the test conditions.
The second number, “7,” relates to temporary immersion in water. A typical IPX7 test places the assembled product in water at a depth of up to 1 meter for up to 30 minutes, based on the applicable test setup.
This rating does not mean the connector can handle every type of water exposure. It does not automatically cover:
A connector marked IP67 is tested against a defined condition. It is not a general promise for every outdoor environment.
Yes. Many connectors use engineering plastics because they are light, electrically insulating, and resistant to corrosion.
Common housing materials include:
The housing material helps, but it does not decide the IP rating by itself. A strong plastic shell can still fail if the gasket is damaged or the cable seal does not match the cable diameter.
I pay close attention to the joint between the plug and socket. This area often creates the main path for dust or water. A well-designed connector usually uses a rubber or elastomer gasket around the mating surface. A locking ring or latch keeps the two parts compressed during use.
When I inspect an IP67 plastic connector, I check four sealing points.
The plug and socket must stay fully engaged. A connector that is only partly inserted may not create enough pressure on the gasket.
Some designs include a clear locking position. Others use a threaded coupling ring. Both systems can work when the parts are correctly matched.
The cable gland or rear seal must grip the cable jacket evenly. A seal designed for a 6 mm cable may not seal a 9 mm cable properly.
Small differences in cable diameter can affect performance. The outer jacket should also be round and free from cuts, dents, or thick molded sections near the sealing area.
The contacts need protection from moisture that may enter through the connector body. Some connectors use individual wire seals. Others use a sealed insert or a molded barrier.
The correct structure depends on the connector design and the application voltage.
An unused cavity can become a water path if the connector requires a sealing plug and the plug is missing. Every open position should follow the manufacturer’s assembly instructions.
Many connectors reach IP67 only when they are fully mated with the approved counterpart. This detail matters during product design.
A loose plug, protective cap, or unconnected socket may have a different protection level. When equipment is serviced, the connector may remain open for several minutes or several hours. Dust and water can enter during this period.
I normally ask these questions before approving a connector:
These questions help separate a lab result from actual product use.
Imagine a plastic connector used on an outdoor temperature sensor. The sensor is mounted inside a metal cabinet near a production line. Water may come from rain, condensation, or routine cleaning.
The connector may pass an IP67 immersion test when it is new and correctly assembled. The installation can still develop problems if:
In this case, IP67 is only one part of the design check. I would also review temperature range, chemical resistance, UV exposure, vibration, cable strain, and expected maintenance activity.
For equipment exposed to water jets, an IP rating such as IP65 or IP66 may be more relevant to the water exposure, while IP67 addresses temporary immersion. A product may carry more than one rating, but the test details should be confirmed from the technical documentation.
I use a simple review process before selecting a plastic connector.
Look for a clear reference to IEC 60529 or the relevant product standard. A sales page that only says “waterproof connector” does not provide enough technical detail.
Confirm that the rating applies to the plug, socket, gasket, cable seal, and mating hardware as a complete system.
Compare the cable’s outer diameter with the approved sealing range. Check the jacket material as well. Some seals perform differently with PVC, polyurethane, silicone, or other cable jackets.
Look for tightening values, insertion depth, seal orientation, locking steps, and recommended tools. Poor assembly can reduce protection even when the connector itself was tested successfully.
A connector used during every maintenance visit may need a different design from one that is assembled once and left in place. Check the stated mating cycle data and inspect the gasket after repeated use.
For a critical application, I ask for a test report, certificate, or declaration that identifies the tested configuration. The document should match the connector model and the intended assembly.
One common mistake is assuming that a plastic body is waterproof by itself. Plastic can resist water, yet the seam, cable entry, or contact area may remain exposed.
Another mistake is applying IP67 to an entire machine when only one connector was tested. The enclosure, cable route, panel cutout, and nearby components can create other leakage paths.
A third mistake is confusing temporary immersion protection with permanent underwater operation. A device used below the water surface for long periods may need a different design and test method.
Plastic connectors can meet IP67 requirements when the material, sealing system, mating parts, and installation method are designed as one unit. I would not approve a connector based on the housing material or a short product description alone. The safer approach is to confirm the test basis, match the installation conditions, and check how the connector will behave after movement, maintenance, and environmental exposure.
When I see “IP67” on a plastic connector, I do not read it as “waterproof in every situation.” The rating describes a specific level of protection against dust and temporary immersion. It does not cover every outdoor condition, every installation method, or every type of water exposure.
Understanding the test behind the code helps me choose the right connector and avoid costly field failures.
The IP code comes from IEC 60529, a standard used to classify protection against the entry of solid objects and water.
The two numbers have separate meanings:
The first number relates to solid particles. A rating of 6 is the highest common dust protection level in the IP code.
The second number relates to water. A rating of 7 covers short-term immersion, not continuous underwater service.
A simple example makes the difference easier to understand. If a sealed plastic connector is dropped into a shallow puddle and recovered within the rated test period, its IP67 design may prevent water from reaching the contacts. If the same connector stays underwater for several hours, the IP67 label alone does not confirm that it will remain sealed.
I often see product descriptions reduce IP67 to one word: waterproof. That wording can create the wrong expectation.
IP67 does not automatically confirm protection against:
A connector may pass an immersion test and still fail when exposed to a strong spray from a pressure washer. That is why IP66 and IP67 are not interchangeable ratings. IP66 focuses on powerful water jets, while IP67 focuses on temporary immersion.
Some products carry both ratings, such as IP66/IP67, because they have been tested for both types of water exposure. I check the product documentation before making that assumption.
A plastic connector does not work alone. Its sealing performance depends on the full connection system.
I review these parts before selecting a model:
Connector housing
The plastic body needs enough strength for the intended environment. Common materials include nylon, polycarbonate, PBT, and other engineering plastics. Each material reacts differently to heat, sunlight, oils, solvents, and impact.
Gaskets and O-rings
A rubber seal may provide the main barrier against water. Its material matters. Silicone, EPDM, and nitrile rubber have different temperature and chemical resistance. A seal that works well in clean water may not suit fuel, oil, or cleaning chemicals.
Cable seal
The cable entry must match the cable diameter. A cable that is too thin may leave a gap. A cable that is too thick may deform the seal or place stress on the housing.
Mating condition
Many connectors reach their IP rating only when fully mated. An open connector, a half-inserted plug, or a missing protective cap may have much lower protection.
Installation quality
Cross-threading, loose locking rings, pinched gaskets, and excessive cable bending can create leak paths. The rating shown on the package does not repair a poor installation.
I once reviewed a connector choice for an outdoor lighting system. The equipment was mounted near a garden irrigation line, so the designer selected an IP67 plastic connector. The rating suited occasional splashes and short exposure to pooled water.
The problem appeared at the cable entry. The connector was rated for a cable with a larger outside diameter, while the installed cable was thinner. The seal could not close around it with enough pressure. Water entered through the cable gland, even though the connector housing itself had passed its test.
The solution was simple: match the cable size to the sealing range, use the correct cable gland, and place the connection where water would not collect. The IP rating became useful only after the complete assembly was designed correctly.
An IP code gives limited information. It does not describe:
A plastic connector may have an IP67 rating and still be unsuitable for a hot engine compartment, a marine installation, or a location exposed to direct sunlight for many years.
I check the technical data for the actual environment. For outdoor use, UV stability matters. For industrial machinery, oil and vibration resistance may matter more than short-term immersion. For buried equipment, long-term soil moisture and cable protection need separate review.
The water rating should match the expected exposure.
IP68 is not a single universal depth or time requirement. One manufacturer may define a test at 2 meters for 24 hours, while another may use a different depth and duration. I read the stated conditions instead of comparing “IP68” labels alone.
A product with IP67 may be suitable for outdoor sensors, lighting, control boxes, and vehicle accessories. It may not be suitable for equipment that remains underwater.
When I evaluate a plastic connector, I use a short checklist:
Identify the water exposure
Will the connector see rain, splashing, hose spray, temporary flooding, or continuous immersion? The answer guides the required rating.
Check the complete product rating
I confirm whether the IP67 claim applies to the connector when mated, capped, or connected to a specific cable and accessory.
Review the test conditions
I look for the applicable standard, immersion depth, test duration, temperature range, and product configuration.
Match the materials to the site
I consider sunlight, temperature, oil, cleaning agents, salt, vibration, and impact. The housing and seal materials need to suit those conditions.
Inspect the cable interface
The cable diameter, jacket material, bend radius, and strain relief all affect the seal.
Plan maintenance
Seals can age, locking parts can loosen, and housings can be damaged during service. A maintenance plan helps protect the original sealing performance.
“IP67 means I can use it underwater.”
Not for continuous underwater service. A separate IP68 specification may be needed.
“The connector is protected even when unplugged.”
Many designs need a sealing cap or a separate rated cover when unmated.
“A higher IP number solves every environmental problem.”
The rating does not cover UV exposure, chemicals, vibration, or electrical performance.
“The housing rating proves the entire cable assembly is sealed.”
The cable gland, plug, socket, seal, and installation method all affect the result.
“IP67 and IP66 are the same.”
They test different water conditions. One focuses on immersion, while the other focuses on powerful water jets.
IP67 is a useful specification when I understand its limits. It tells me that a properly assembled connector has dust-tight protection and can handle temporary immersion under defined test conditions. It does not replace material selection, cable matching, installation control, or site testing.
For a plastic connector, the right question is not only “Does it have IP67?” I also ask, “What will this connector face, how will it be installed, and what does the manufacturer’s test actually cover?”
When I choose an IP67 plastic connector, I am not only checking whether the product looks strong. I need to know how it performs after exposure to dust, rain, temporary immersion, vibration, and repeated cable movement.
Many connector problems start with a simple mistake: treating the IP67 label as a promise for every outdoor condition. IP67 means the connector is dust-tight and can resist temporary immersion in water under defined laboratory conditions. It does not mean the connector can stay underwater for long periods, resist high-pressure water jets, or work safely with every chemical.
A careful selection process helps reduce wiring faults and service work.
The IP code has two numbers.
The first number, 6, refers to protection against solid particles. A connector with this rating is designed to prevent dust from entering the enclosure under the test conditions.
The second number, 7, refers to temporary immersion in water. The test normally involves immersion up to 1 meter for up to 30 minutes, based on the applicable test setup.
This rating fits many outdoor applications, such as:
I still check the full product specification before making a choice. A connector installed in a washdown area may need a higher water-jet rating. A connector placed below water for long periods may need a product designed for continuous immersion.
The housing material affects service life, fit, and resistance to the working environment.
Common plastic options include nylon, polyamide, polycarbonate, and other engineering plastics. Each material has its own limits. Some handle impact well. Some perform better under heat. Some resist oils or outdoor exposure more effectively.
I ask these questions before choosing:
A connector may carry an IP67 rating when new, yet its performance can change if the housing becomes brittle, the seal loses flexibility, or the cable gland is damaged.
The seal is a key part of an IP67 plastic connector. A strong housing cannot protect the connection if the gasket is missing, twisted, cut, or compressed unevenly.
I inspect the following details:
The cable must match the gland range. If the cable is too thin, the gland may not seal around it. If the cable is too thick, the assembly may be difficult to close and the seal may deform.
During installation, I keep the sealing area clean. A small piece of dirt can create a path for moisture. I also avoid excessive force because damaged threads can prevent the connector from closing evenly.
Water protection is only one part of connector selection. The electrical rating must match the system.
I check:
For example, a low-current sensor connector may not suit a motor circuit. A connector that works well with a small signal may heat up when used with higher current.
Contact design also affects signal quality. In a sensor system, loose contacts or poor plating may cause unstable readings. In a lighting circuit, weak contact pressure may create heat at the connection point.
An IP67 connector may be sealed but still fail if the cable moves against the contact area every day.
I look for a connector with suitable strain relief when it is used on machines, vehicles, pumps, or moving equipment. The cable should not pull directly on the terminals.
A practical example can be seen in outdoor agricultural equipment. A control cable may pass near a pump and experience vibration during operation. If the cable hangs from the connector, the seal and crimp area may wear faster. A clamp fixed to the equipment can support the cable and reduce stress on the connector.
Small installation details often affect service life more than the connector label alone.
I do not rely only on the product description. I check the assembled connection.
A useful inspection process includes:
For larger projects, sample testing can help compare connector batches or installation methods. The test should reflect the actual working environment. A light spray test may not represent a connector mounted beside a pressure washer.
Some common mistakes are easy to prevent:
I also avoid assuming that a higher IP number solves every problem. Mechanical strength, chemical resistance, electrical load, and installation quality still need attention.
A reliable IP67 plastic connector is selected as part of a complete connection system. I check the rating, plastic material, seal, cable fit, electrical load, and working conditions together. That approach gives me a clearer basis for choosing a connector that suits the equipment instead of relying on one label.
Contact us on suyi: layla@suyidz.com/WhatsApp +8618223673522.
1 IEC 2013 Degrees of Protection Provided by Enclosures IP Code
2 International Electrotechnical Commission 2013 IEC 60529 Ed 2.2 Degrees of Protection Provided by Enclosures
3 IEC 2021 Environmental Testing Part 2-18 Tests Test R and Guidance Water
4 ISO 2017 Road Vehicles Degrees of Protection IP Code for Electrical Equipment
5 National Electrical Manufacturers Association 2020 Enclosures for Electrical Equipment
6 TE Connectivity 2022 Sealing and Protection Principles for Industrial Connectors
